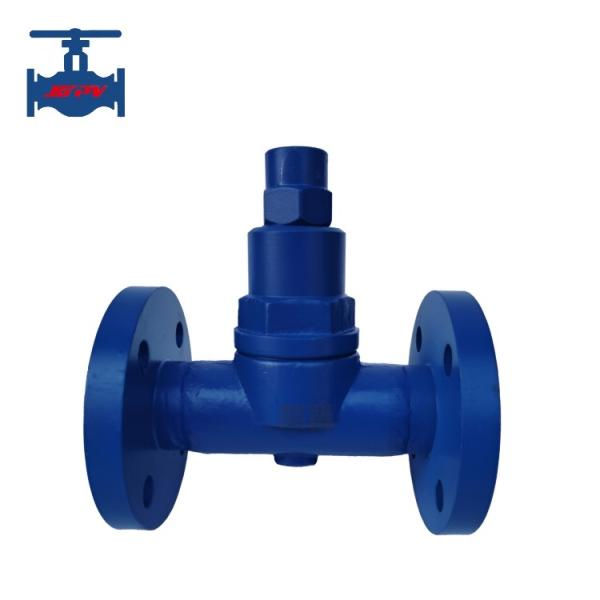

Cast Steel Thermostatic Adjustable Bimetallic Small Displacement Steam Trap

Product introduction:

Adjustable bimetallic steam trap has a unique structure, excellent performance, large drainage capacity, adjustable leakage temperature, and a sub-cooling of around 2 ℃, which may eliminate a large amount of cold air and other non condensable vapors and will not cause steam blockage. Replaceable internal components, easy to maintain and adjust. Using the principle of thermal sensing to discharge condensed water can handle large start-up loads. As the system temperature and pressure increase, the stacked nickel chromium bimetallic components of the drain valve begin to expand. When steam reaches the drain valve, the valve is tightly closed to prevent steam loss. Ensure that the system operates efficiently while saving energy.

Product component and performance:

Product application:

1. The thermosensitive element of this bimetallic plate drain valve is made of imported materials, which have high sensitivity, durability, and durability.
2. The discharge temperature of condensate can be adjusted to effectively utilize the sensible heat of condensate.
3. Automatically adjust the drainage amount with a fixed subcooling, and timely discharge the condensate water.
4. Excellent water resistance and automatic air discharge performance.
5. This valve has a small volume and can be installed at any angle, with good flexibility.
6. There is high-temperature condensate in front of the valve, forming a water seal without steam leakage.
7. Equipped with a large circulation area filter screen, it can replace internal components and clean impurities online, making maintenance convenient.
